*? All types of Urine Formed Elements are classified and counted;
*? 11, 12, 15 urine chemistry parameters are measured,depending on various test strips;
*? Color, turbidity and conductivity are measured as well.
|

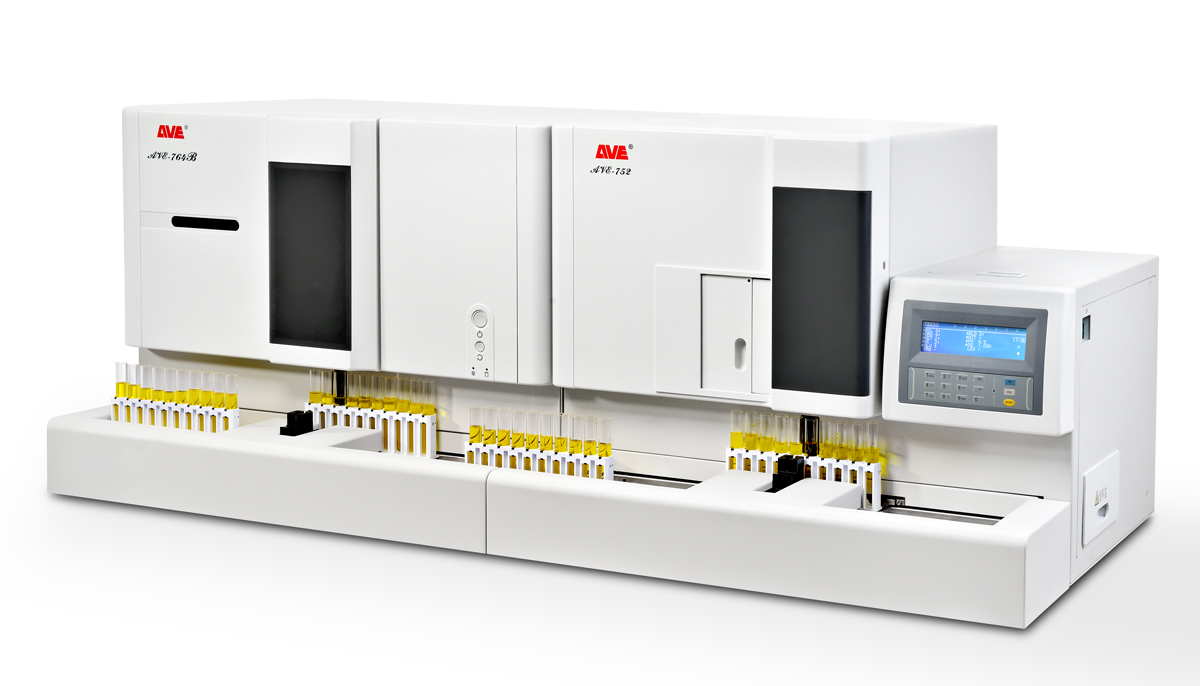

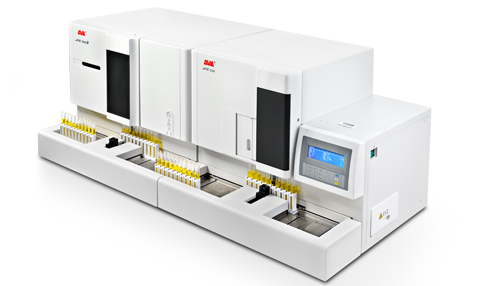

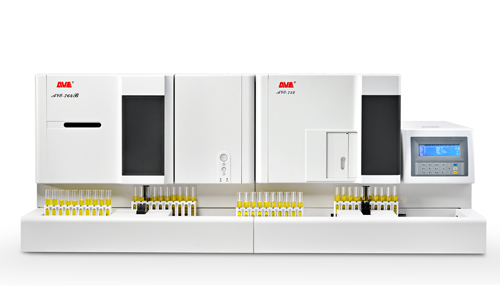

AVE-764: Use automated morphological microscopy technology to capture real images of urine formed elements, and then locate and track, recognize, classify and count them.
AVE-752: Reflectance Photometer.
|
*? Bridge-free combination, time-saving sample forwarding;
*? One system for both Urine Chemistry Test and Urine Formed Elements Test;
*? Efficient, fast and contamination-free;
*? Complete and illustrated report, with urine chemistry test results, urine formed elements test results and urine physical parameters, provides meaningful support to clinic diagnosis.
?
|
?
Technical Parameters for AVE-764:
Auto-detected Urine Formed Elements:? Normal red blood cells (NRBC), Abnormal red blood cells (ARBC), White blood cells (WBC), Casts (CAST), Epithelial cells( EPI), Yeast (YST), Crystals (CRYS), Mucus (MUC) and Bacteria (BAC).Further sub-classification is available with manual on-screen verification!
Magnification:? Standard 10X & 40X images
Memory:? Min. 200,000 results (including all images captured)
Min. Sample volume:? 2.0 ml
Sample level detection:? Yes
Max. Sample loading number:? 6 racks of 10 tubes
Throughput:? Up to 80 tests / hour (764A), up to 100 tests / hour (764C), up to 120 tests / hour (764B)
Built-in Computer:? Yes
Built-in Barcode reader:? Yes
Printer:? Laser, external, optional
Interfaces:? USB, RS232, LAN
Dimensions (main unit):? 680 x 650 x 545mm (L x D x H)
Weight (main unit):? 59kg
Power (main unit):? 100-240V~50/60Hz, 450VA
?
Technical Parameters for AVE-752:
Evaluated parameters: Bilirubin (BIL), Urobilinogen (URO), Ketones (KET), Ascorbic acid (AsA), Glucose (GLU), Protein (PRO), Blood (BLD), pH (PH), Nitrite (NIT), Leukocytes (LEU), Specific gravity (S.G.), Microalbumin (ALB)*, Creatinine (CRE)*, Calcium (Ca)*
Memory Capacity:? Min. 20,000 results
Test Strips adding capacity:? 200 strips
Throughput:? Up to 240 tests / hour
Min. Sample volume:? 2.0 ml
Max. Sample loading number:? 6 racks of 10 tubes
Built-in Barcode reader:? Yes
Printer:? Laser, external, optional
Interfaces:? USB, RS232, LAN
Dimensions (main unit):? 680 x 650 x 545mm (L x D x H)
Weight (main unit):? 53kg
Power (main unit):? 100-240V~50/60Hz, 300VA
?
*available soon
